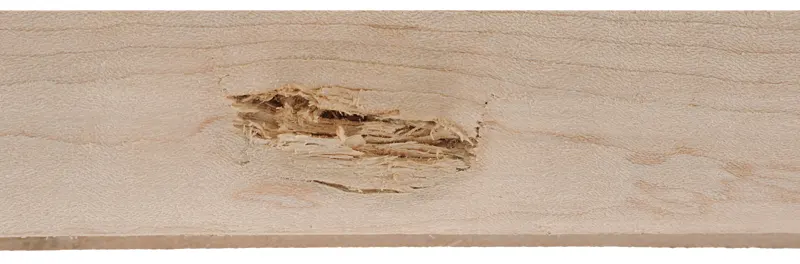

This stock would normally be priced at $375.00, but is offered at a discount. This stock has a 1-1/8" long gouge on the left side of the forearm 8" behind the muzzle. This stock could be cut back for a 36" barrel, and the muzzle cap would cover the gouge. Or a "Dutchman" style plug could be installed and used full length.

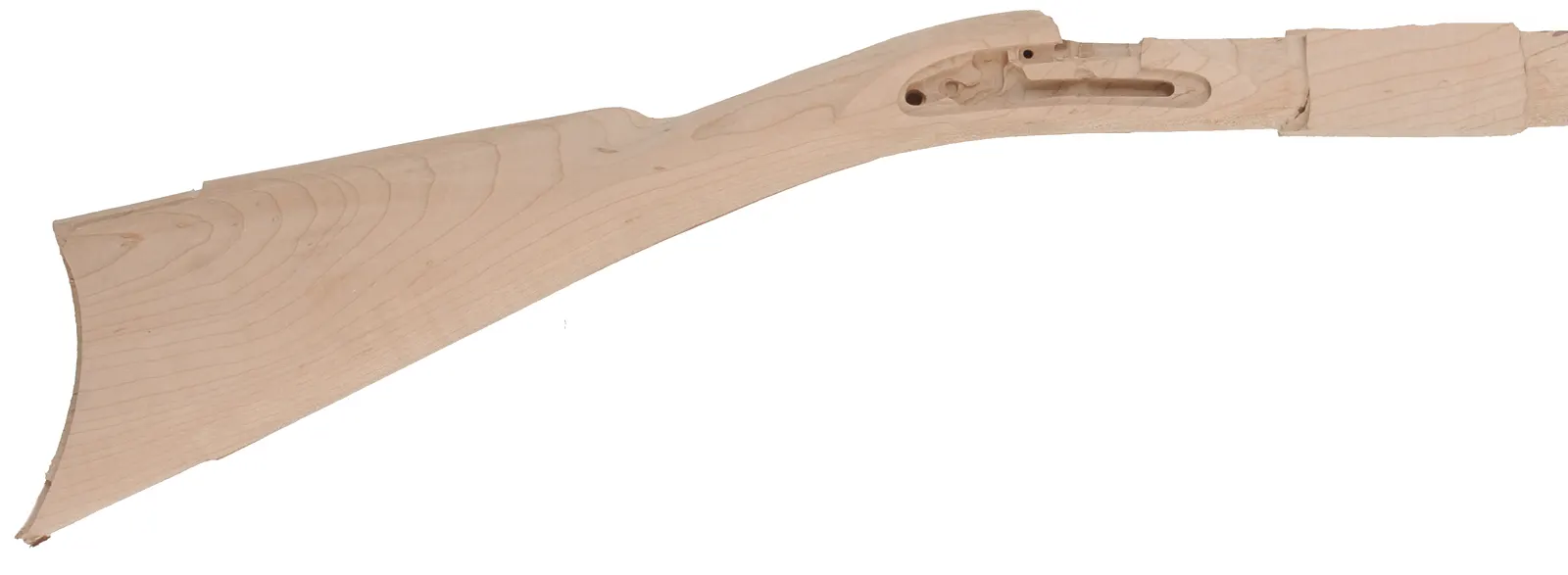

Shaped and pre-inlet for, L&R right hand late English lock, L&R Hawken double set triggers, and L&R 1" flint hooked breech, this Hawken fullstock is modeled after the early work of Jacob and Samuel Hawken, with an early square cheekpiece, not the later beavertail found on halfstocks. Shaped for a right hand shooter, with 1" straight octagon barrel channel. The stock will accept barrels up to 42" in length. All have 7/16" ramrod hole drilled full depth, and a shaped forend. The buttplate is pre-cut. Order our Hawken plans to help layout and design this project.
Specifications for non-inlet stocks:- Drop and trigger reach: drop is 3-1/2" from the line of sights to heel, at 13-3/4" of pull
- Barrel channel size: 1" straight octagon, up to 42" length
- Breech plug: #PLUG-LRF-16-3 L&R flint hooked breech plug & tang
- Butt end: 1-1/4" wide by 5-1/4" high, cut for buttplate
- Buttplate: #BP-HAWK-SE-I wax cast steel
- Lock, flint: #LOCK-LR-900-D L&R Manton, double throat, flint lock
- Lock, percussion: #LOCK-LR-300 L&R Trade Rifle, percussion lock
- Ramrod hole & groove: 7/16" diameter, drilled full depth
- Ramrod pipe, entry: #RP-HAWK-T-E-7-I wax cast steel
- Triggers: #TR-LR-1300 L&R double lever double set triggers
All sizes are nominal. Please verify with description for more information.
-
Barrel Channel Length
42"
-
Barrel Profile
-
Straight Octagon
1.000" ( 1" )
-
Stock Style
Hawken - Early Fullstock
-
Stock Wood
Maple - Grade 3
